LED 25W Ultra Flexible gooseneck Work Lighting, Inspection Lighting, Cutting machine, Lathe machine, Milling machine

  • Vessel & Equipment
  • LED 25W Ultra Flexible gooseneck Work Lighting, Inspection Lighting, Cutting machine, Lathe machine, Milling machine

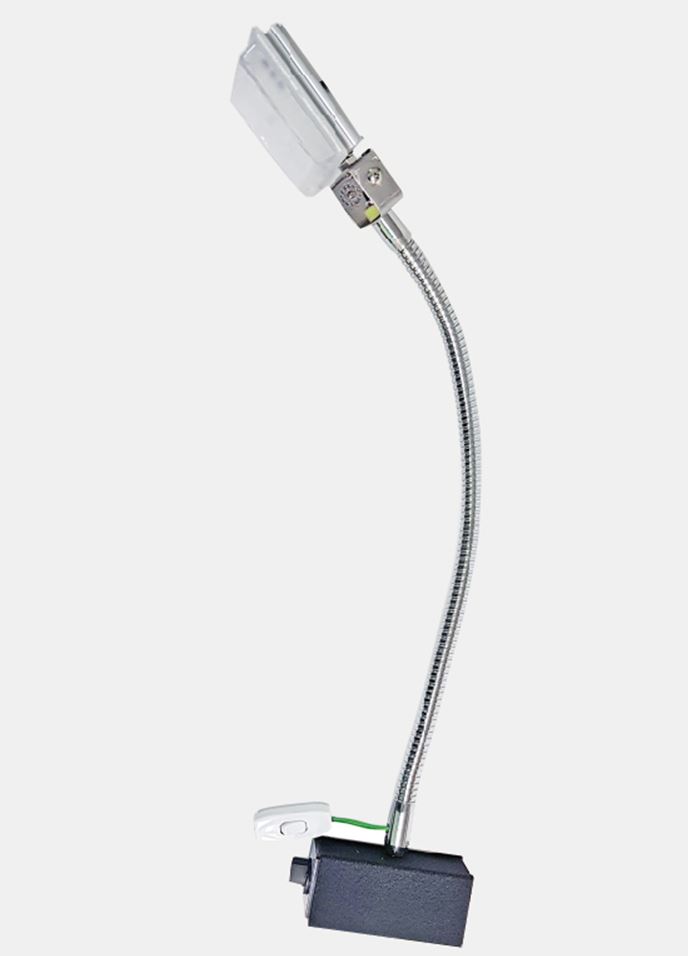

Flexible gooseneck LED Flood Lighting 25W with Magnetic base

  • Power consumption : 25W
  • Input voltage : 220V(210V~270V) ,50~60Hz
  • Total flux : 1,275(lm)
  • CRI : 75RA
  • CCT : 5700K,3000K
  • IP level : IP67
  • Weight : 1.2kg
  • PF : 0.9 PF
  • Operation temperature : -30℃ ~ 40℃

DIMENSION

>  Flexible gooseneck Specification

   - Length : 480mm

   - Outer diameter : 17mm  내경 : 8.0mm

   - Material : PW-2, Cr plated

   - Shrink tube work for dusty environments (Option)



>  End Connectors

   - M8 x 1.25, 10mm ( Cr plated)



Magnetic base  (Made in China)

   - On/off switch makes it easy to position

   - 1500N {150kgf],  On, Off

   - 50 x 120 x 52mm

   - M8 x 1.25,  7mm



Stallone's floodlights are loved by customers for their quality and reasonable price.





1. World-class sealing (waterproof, moisture-proof) technology

   - Waterproof, moisture proof Technical description

   - Link:  US Patent  Korea Patent 1Korea Patent 2








2. Free interference

 There is no radio interference in the wireless communication device

    and fish finder used in the ship.



3. Used High quality aluminum (AL6063) extruded heat sink

  - Our original designed heat sink, Domestic processing

  - Quality and heat dissipation efficiency are much higher than Chinese die casting method.

  - It can be used in high humidity and high salinity coastal area because it does not rust almost

    due to high quality AL6063 and Anodizing




            [ AL6063 Extrusion heat sink ]





4. Proven quality

    - Flood light busied 8 years for vessel lighting

    - Cumulative sales of 600,000 units, exported to Japan, Dubai, Italy and Norway

    - Antarctica Sejong Station, Norwegian Salmon Farm, Dubai Oil Reservoir

      POSCO Pohang Factory, Hyundai Motor Ulsan Factory
