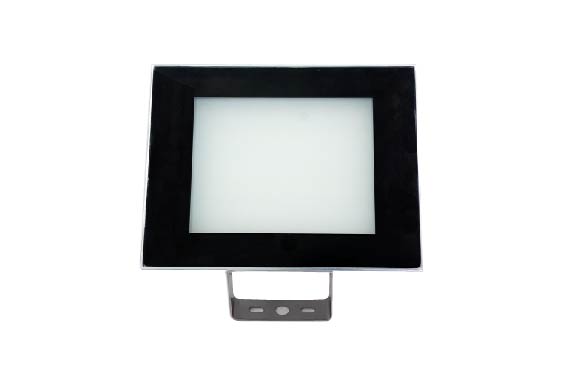

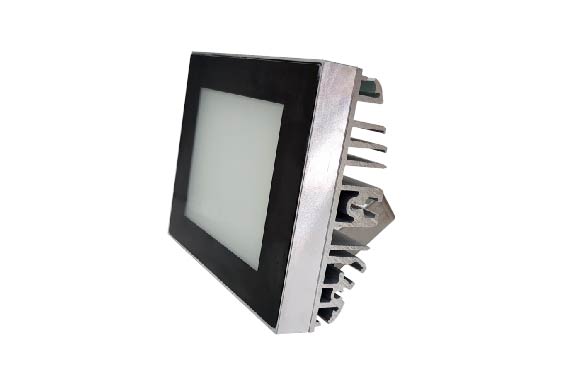

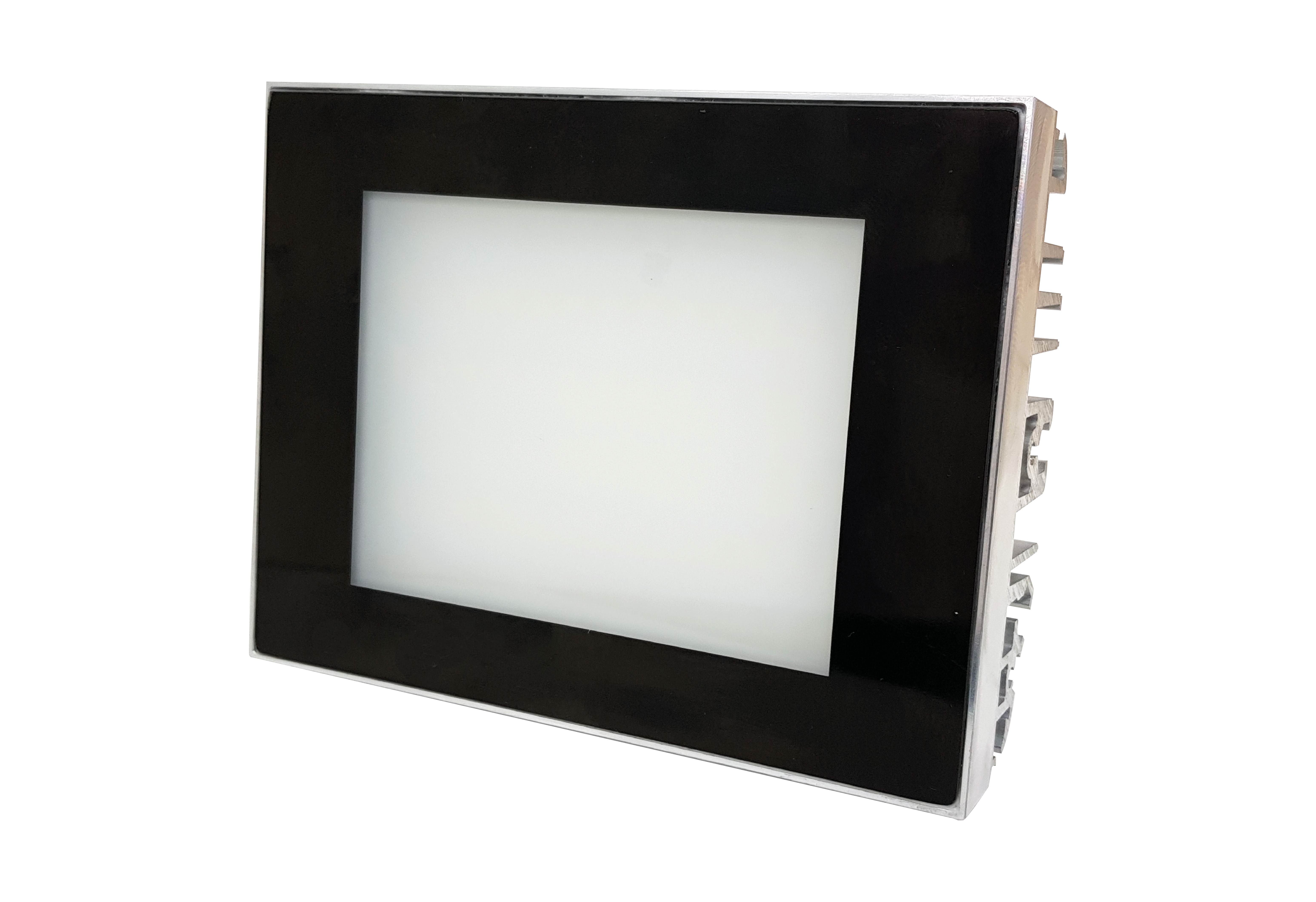

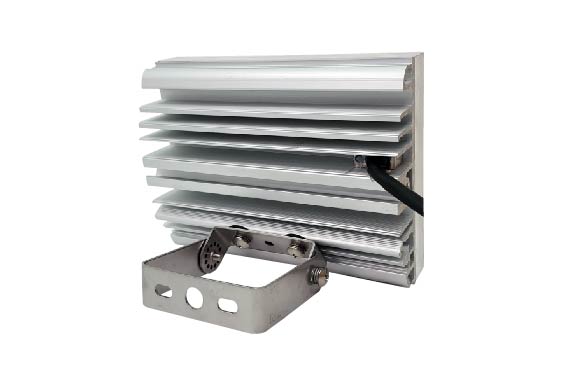

Stellon 25W LED Work Light for Machine Tools
- Vessel & Equipment
- Stellon 25W LED Work Light for Machine Tools
25W LED Work Light for Machine Tools
Specifications
- Power consumption : 25W
- Input voltage : DC24V ( Input Valtage 19V~38V)
- Total flux : 1,950 lm,
- CRI : 70 Ra
- CCT : 5700K
- IP level : IP67
- Weight : 1Kg
- Operation temperature : -30℃ ~ 60℃
DIMENSION
ㅁ. Body: AL6063
ㅁ. Cover : Tempered Glass
ㅁ. Brackets: Steal + Electrodeposition coating
ㅁ. Cable: Dura& Flex VU 3000mm
Water, vibration and oil resistant LED work light, suitable for machine tools applications and high temperature water cleaning environments
- Excellent oil resistance with a special sealing structure with IP67 protection rating, suitable for machine tool applications with cutting fluids
- Suitable for high pressure and high temperature water cleaning environments(IP69K)
- Tempered glass prevents damage from machine tool chips
- Foreign substances do not accumulate on the shielding glass surface of the working light due to its flush structure to the housing structure oft he product
- An external power supply is not needed for the AC type product; AC voltage can be applied directly to the product
- Can select from a variety of bracket options from direct mount, tilt mount, and pan/ tilt mount type to fit your work environment or lighting condition needs
- Equipped anti-glare filter
- Suitable for environments that require stable intensity illumination for improved visibility
- Standard entry cable included. Can customize the product with the M12 connector if requested
- Customized oil resistant cable attached type availabl
