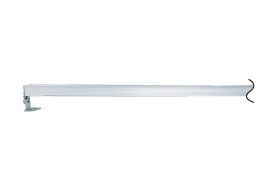

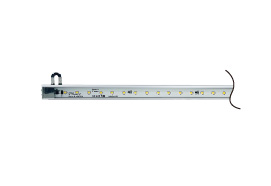

LED DC12V ~ 36V 16W BAR tilt Type, IP67
- Exterior Architectural
- LED DC12V ~ 36V 16W BAR tilt Type, IP67
DC12~36V 16W BAR
ORDER CODE : SB-312
SPECIFICATION
- Power consumption : 16W
- Input voltage : DC12V~36V
- Total flux : 1,011(lm)
- CRI : 75RA
- CCT : 6000K,3000K
- IP level : IP65
- Weight : 0.25kg
- Operation temperature : -20℃~40℃
DIMENSION
1. Advanced LED DC Light Bar, Made in Korea
- For Exterior Architectural, For Vessel & Equipment
- Choose this if you want a high quality product.
- Molded with silicone, no yellowing.
IP67, Perfect Waterproof, Moisture Proof
- white, Warm white,
2. Free interference
- There is no radio interference in the wireless communication device
and fish finder used in the ship.
- Our original designed heat sink, Domestic processing
- Quality and heat dissipation efficiency are much higher than Chinese die casting method.
- It can be used in high humidity and high salinity coastal area because it does not rust almost
due to high quality AL6063 and Coating treatment.
[ AL6063 Extrusion heat sink ]
4. Used High quality LED, Poly-carbonate , PCB & the Other Component
- Most of the products are Samsung LED or Cree LED, and a few are using Osram LED.
We do not use Chinese LEDs.
- Use high-quality PC materials that are also used for automotive headlights.
Therefore, there is no yellowing caused by UV, and it is not broken well.
- We mainly use FR4 PCB of large and reliable company.
5. Proven quality
- We have been in lighting business for more than 9 years,
start work for ships working light
- Cumulative sales of 600,000 units, exported to Japan, Dubai, Italy and Norway
- Antarctica Sejong Station, Norwegian Salmon Farm, Dubai Oil Reservoir
POSCO Pohang Factory, Hyundai Motor Ulsan Factory
- Defective rate 0.27%
