Internet access on / off Controller & Digital Timer with Your SmartPhone
- Street & Security
- Internet access on / off Controller & Digital Timer with Your SmartPhone
원격 온오프 제어기

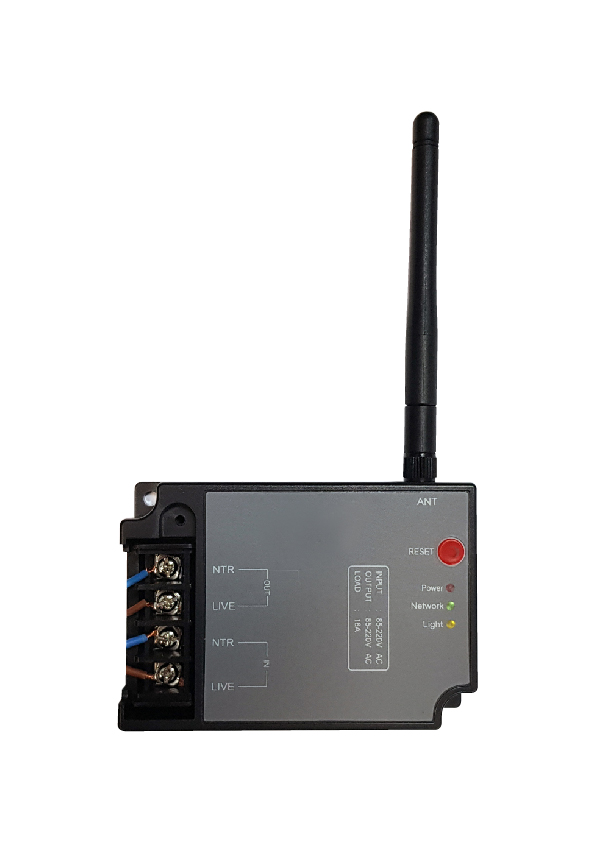

1. Internet access on / off controller
For safety. For convenience and speed.
The smartphone app can be used to turn the power on and off remotely.
ㅁ. Auto On / Off for sunset and sunrise times
ㅁ. ON / Off according to the desired schedule by day
ㅁ. Anytime, anywhere On / Off
ㅁ. Turn on the lights via internet and check the site with CCTV
ㅁ. Shut off power in case of emergency, In case of emergency power supply

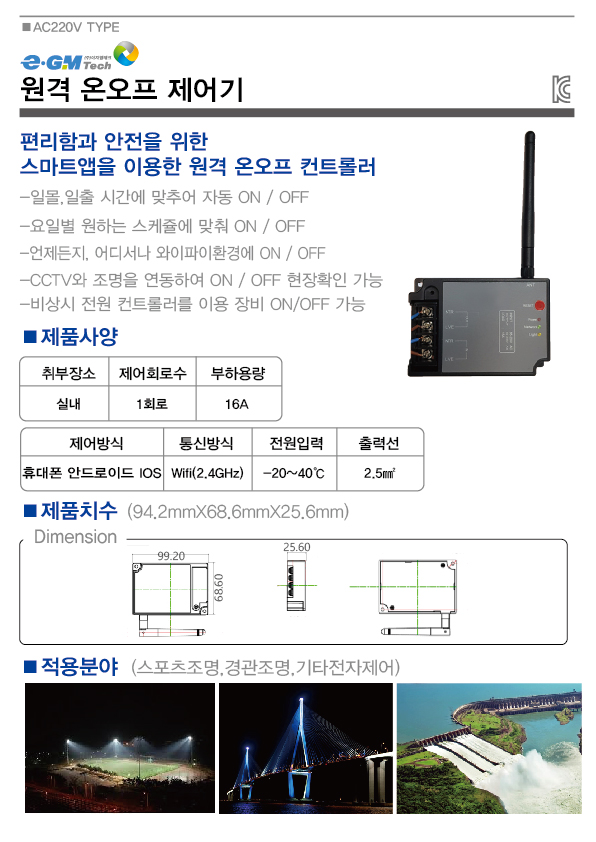

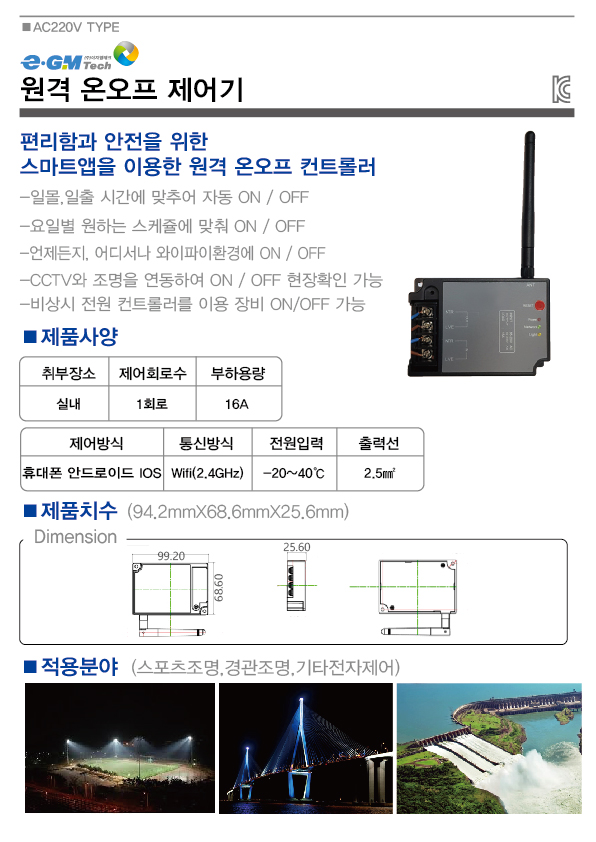

2. Specification
● size: 94.2mm(w) X 99.2mm(H) X25.6mm(D)
● Operating temperature : 0도~65도
● Input voltage : AC220V 60hz
● Load current : 16A
● Control method : Smartphone, Android, iOS
● Communication : WIfi (2.4GHz)
● Power line : 2.5㎟
3. 제품결선도

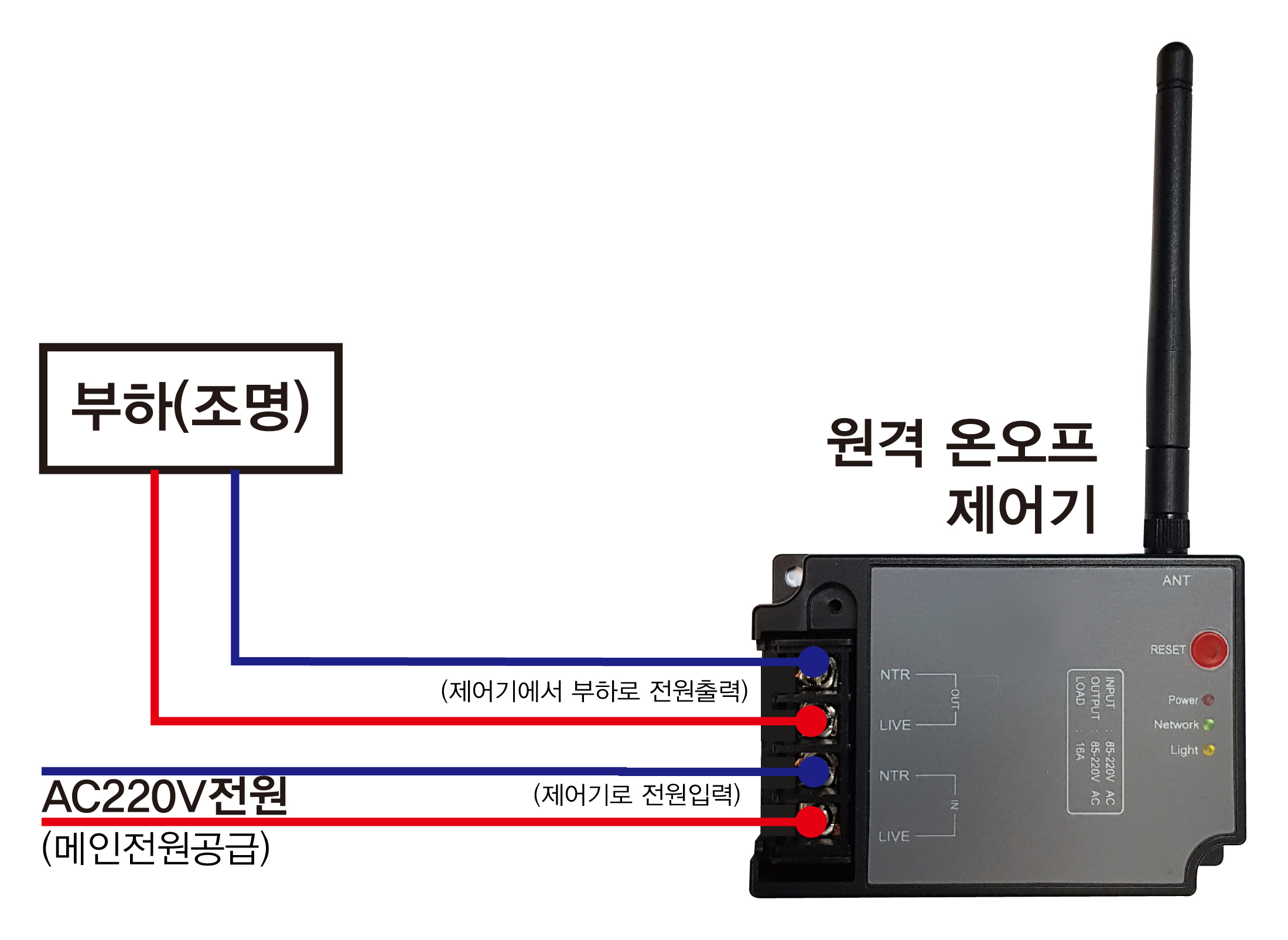

●2.2kw 이하일시 결선 방법(예시1)

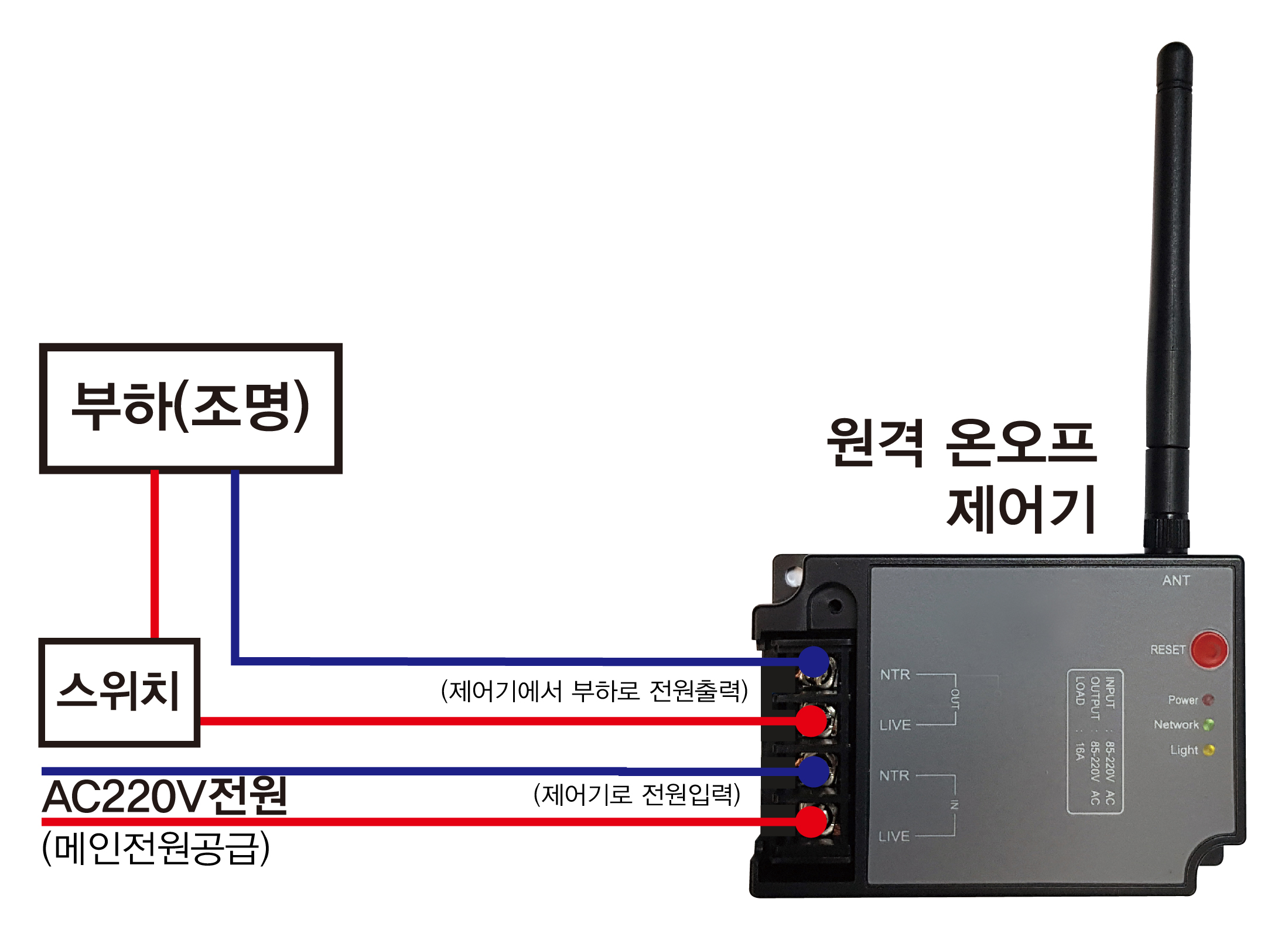

●2.2kw 이하일시 결선 방법(예시2)

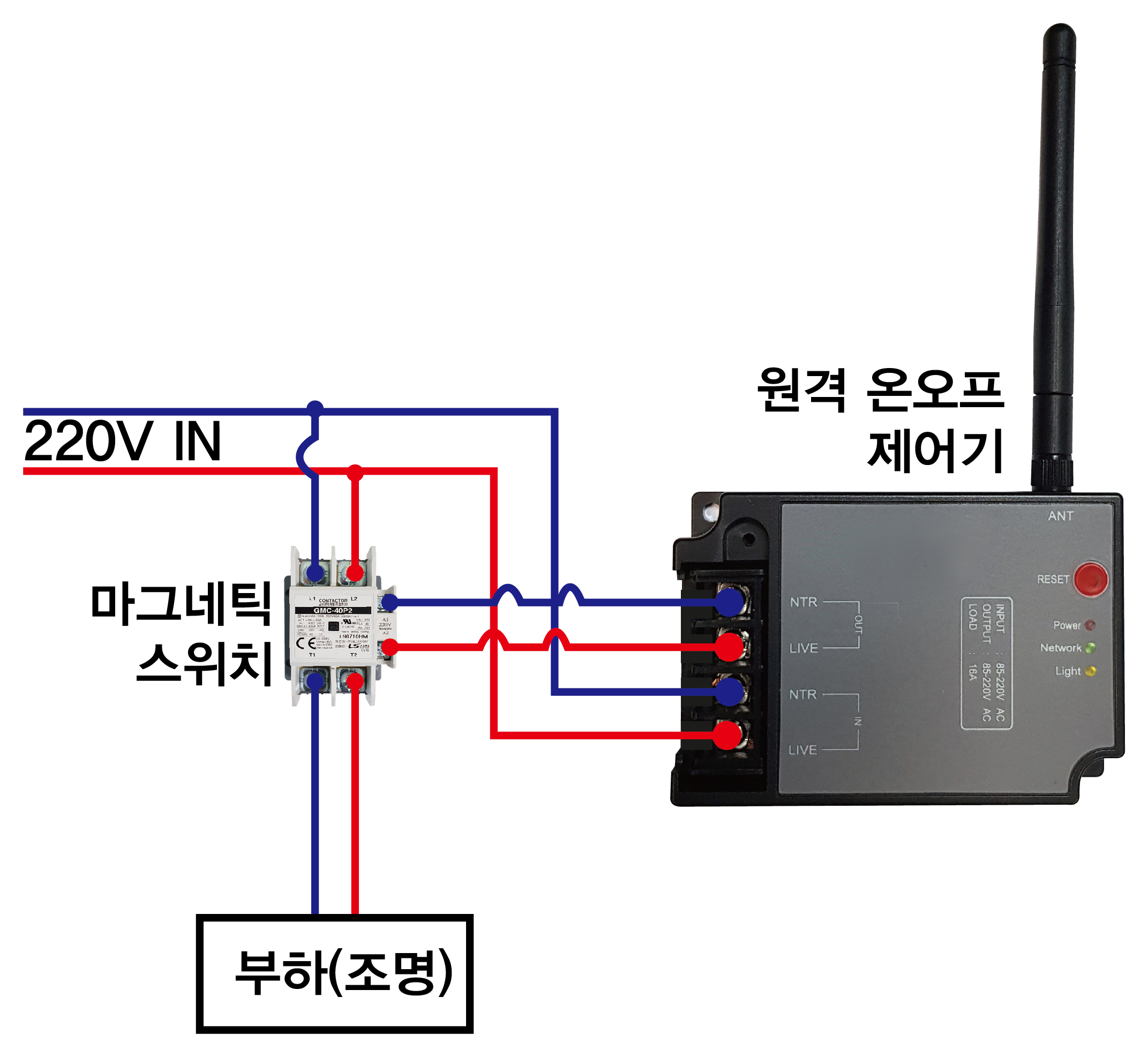

● When using more than 2.2kW : Use a Magnetic contactor
Magnetic contactor Link : http://me2.do/5Gb3qaop
