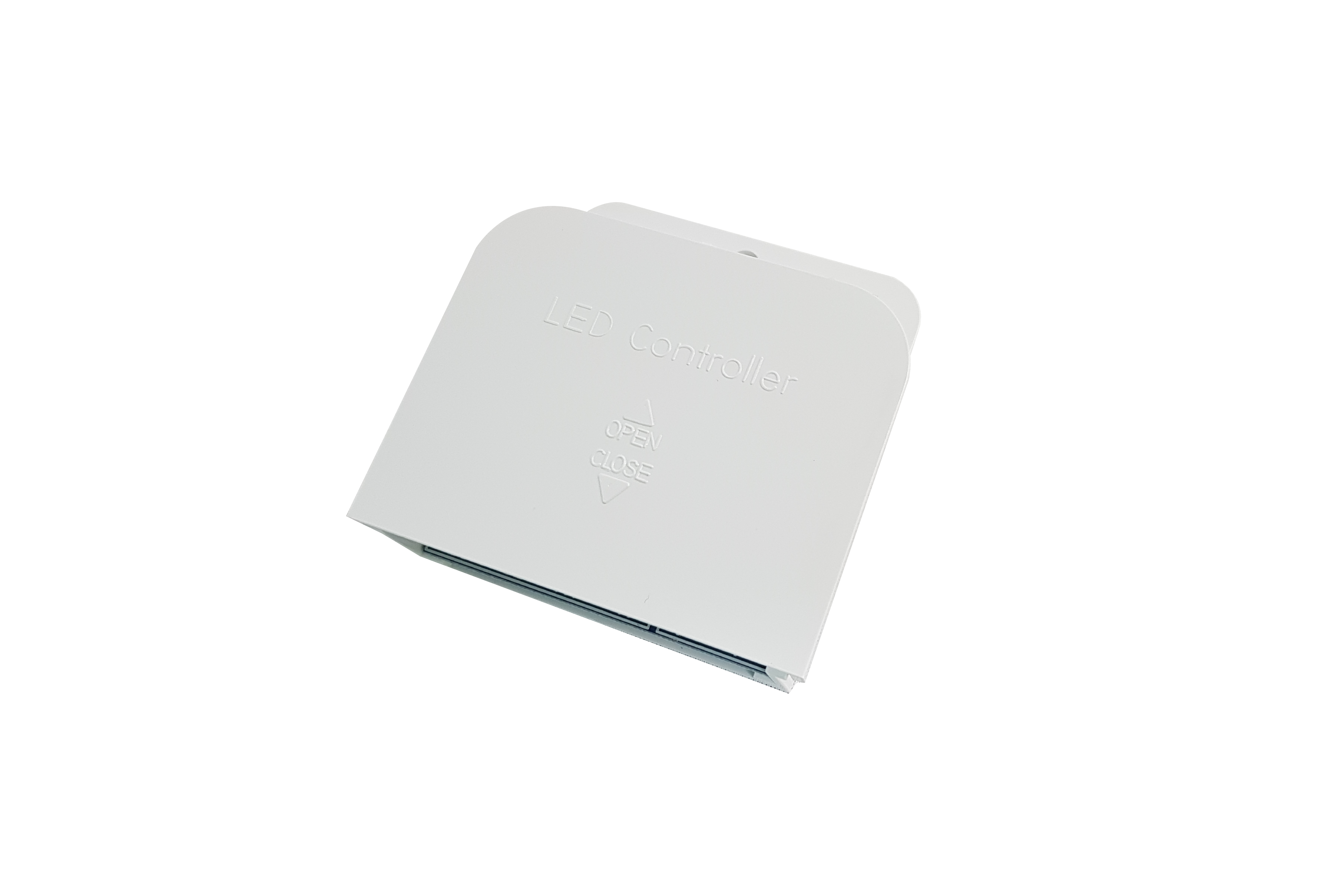

LED Controller
ORDER CODE : RGB-300
SPECIFICATION
- Power consumption : -
- Input voltage : -
- Total flux : -
- CRI : -
- CCT : -
- IP level : -
- Weight : 0.2kg
- PF : -
- Operation temperature : -
Rating
- Below 73W per circuit, DC12V
- Up to 300 RGB modules, 100 white modules per circuit (total of 300)
LED Controller provides RGB Led and White LED for expression of various patterns such as dimming, flickering, dimming+flickering, and color fixing.
Especially, LED Controller combines three primary lights of red green and blue
to express 7 color combinations.

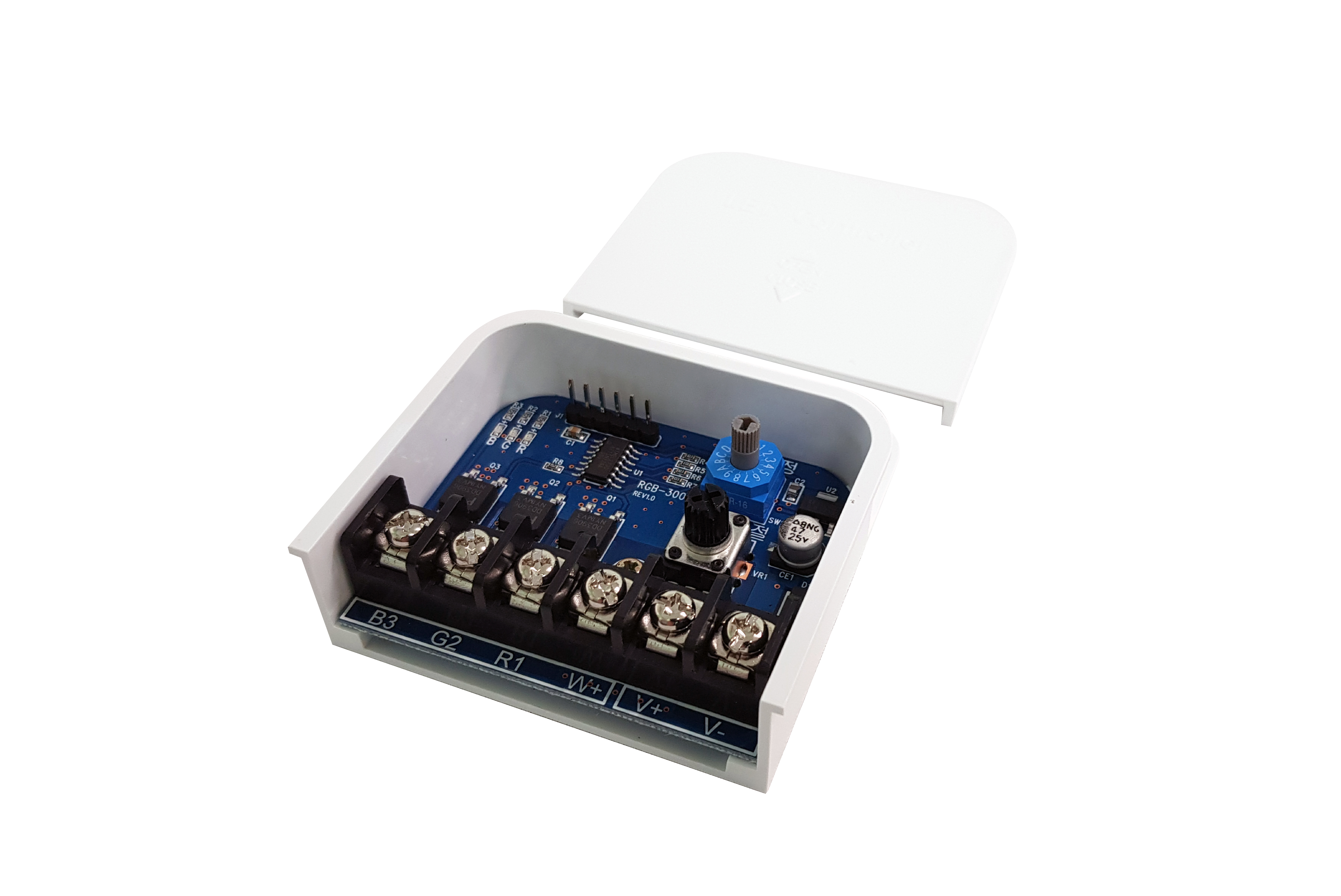

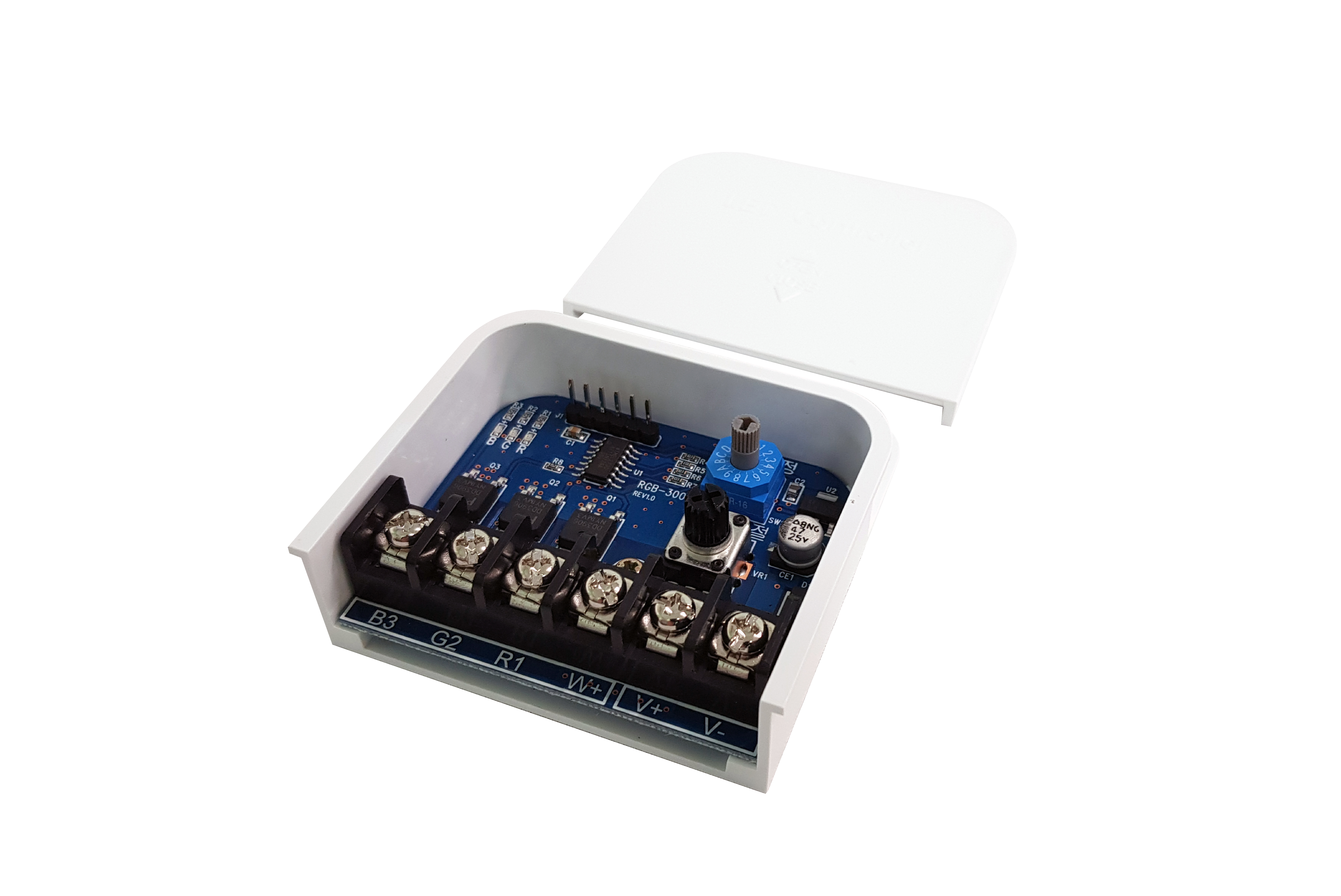

- Rotary switch for simple mode selection
- 16 expressions with RGB mode, one-color mode, and white mode
- Easy expression setting and speed adjustment without separate tool
- Rain-proof type for use in indoor and outdoor
- Simple size
RGB/One-Color Mode
Mode | Expression Setting | Mode Explanation |
Wiring Diagram | ||
RGB Mode | 0 | Sequential dimming |
 |
||
| 1 | Sequential flickering |
||||
| 2 | Sequential dimming and flickering |
||||
One-Color | 3 | Fixed lighting of red(R) |
|||
| 4 | Fixed lighting of green(G) |
||||
| 5 | Fixed lighting of blue(B) |
||||
| 6 | Fixed lighting of yellow(RG) |
||||
| 7 | Fixed lighting of sky-blue(GB) |
||||
| 8 | Fixed lighting of purple(RB) |
||||
| 9 | Fixed lighting of white(RGB) |
||||
