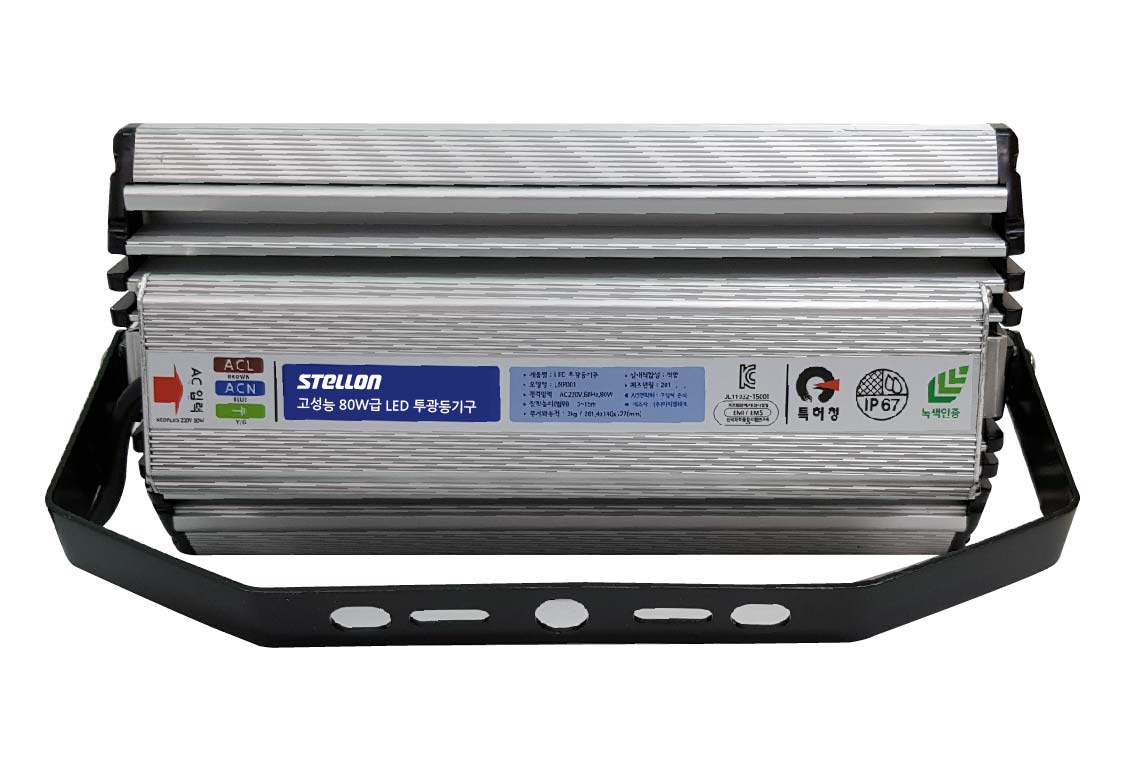

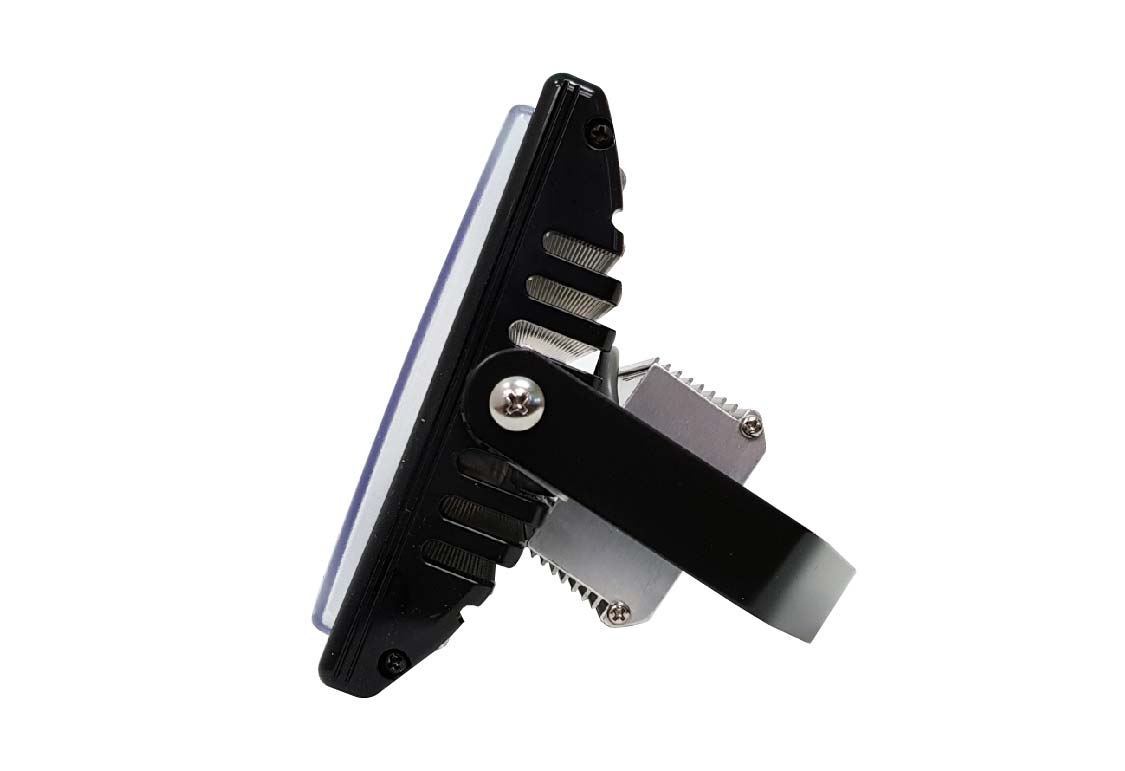

LED Flood Light 80W, Water-proof, IP67, Korea



Neoplus longbody 80W

ORDER CODE : LNP001-OV

SPECIFICATION

  • Power consumption : 80W
  • Input voltage : 220V (190V ~ 290V) , 50~60Hz
  • Total flux : 8,200(lm)
  • CRI : 75RA
  • CCT : 6000K, 3000K
  • IP level : IP67
  • Weight : 2.1kg
  • PF : Over 0.9 PF
  • Operation temperature : -30℃~55℃

DIMENSION



EGM Tech's floodlight uses international patented sealing technology.
And it has high durability that is 100% water-proof, moisture-proof and dust-proof.



For lensed models,

High efficiency total reflection By applying individual lens, we minimize glare and

increase light transmission rate to the highest level.





1. World-class sealing (waterproof, moisture-proof) technology

   - Waterproof, moisture proof Technical description

   - US Patent, Korean Patent 1, Korean Patent 2










2. Used High quality aluminum (AL6063) extruded heat sink used

  - Our original designed heat sink, Domestic processing

  - Quality and heat dissipation efficiency are much higher than Chinese die casting method.

  - It can be used in high humidity and high salinity coastal area because it does not rust almost

    due to high quality AL6063 and Coating treatment.




            [ AL6063 Extrusion heat sink ]



3. Used High quality LED, PolyCarbonate , PCB & the Other Component

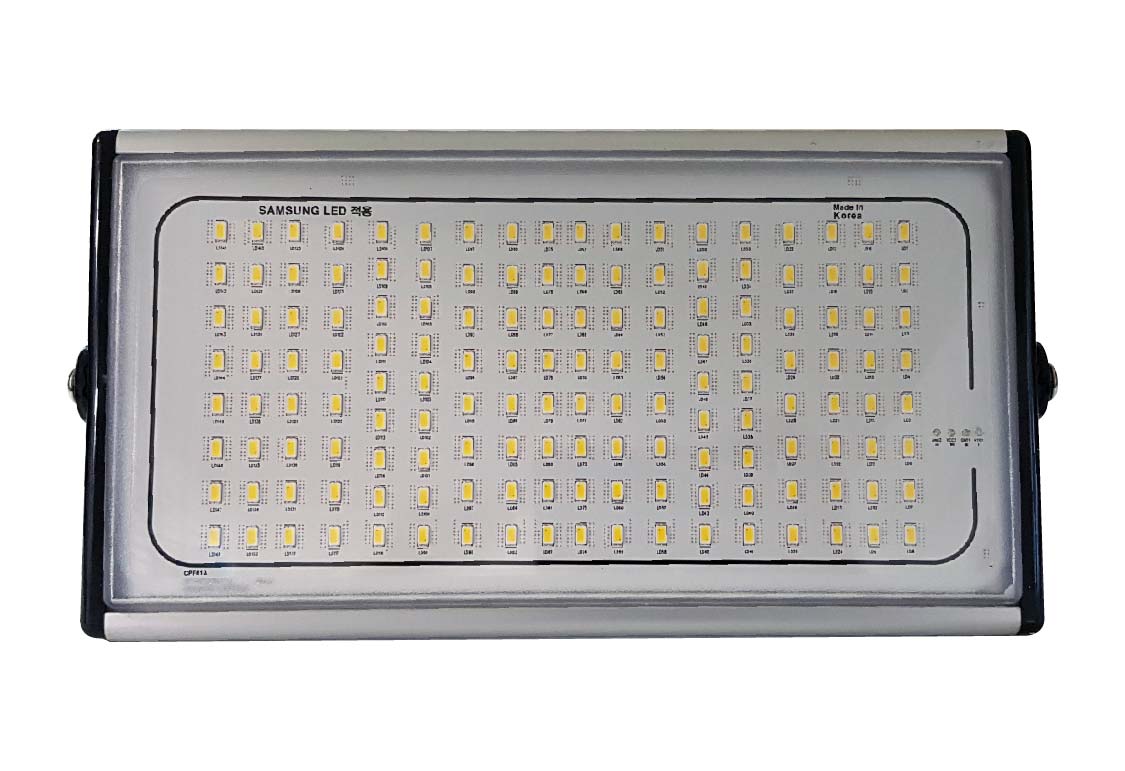

   - Most of the products are Samsung LED or Cree LED, and a few are using Osram LED.

      We do not use Chinese LEDs.

   - Use high-quality PC materials that are also used for automotive headlights.

      Therefore, there is no yellowing caused by UV, and it is not broken well.

   - We mainly use FR4 PCB of large and reliable company.





4. Proven quality

    - We have been in lighting business for more than 9 years,

      start work for ships working light

    - Cumulative sales of 600,000 units, exported to Japan, Dubai, Italy and Norway

    - Antarctica Sejong Station, Norwegian Salmon Farm, Dubai Oil Reservoir

      POSCO Pohang Factory, Hyundai Motor Ulsan Factory

    - Defective rate 0.27%
